Strong Ti2
STRONG Ti2
Titanium alloy Solid Wire For MIG & TIG Welding
STRONG Ti2 is a bare solid wire in bright finish used for welding commercial pure titanium alloys commonly found in applications requiring high temperature resistance and resistance to chemical reagents. STRONG Ti2 is the most popular Titanium Alloy welding wire because of its good balance of strength, formability and weldability.
The most common applications of STRONG Ti2 are in the aircraft industry, where high tensile
strength and low weight ratios are required. Other uses include cryogenic and petrochemical
applications such as chemical process, heat exchangers, pressure vessels, piping systems and
chemical storage tanks.
TYPICAL WIRE CHEMISTRY (%)
| C | O | N | H | Fe | Ti |
|---|---|---|---|---|---|
| 0.03 MAX | 0.08-0.16 | 0.015 MAX | 0.008 MAX | 0.12 MAX | BALANCE |
| Required as per AWS 5.16 | Y.S MPa | U.T.S. MPa | ELONGATION % | IMPACT VALUE AT 20°C JOULE |
|---|---|---|---|---|
| 300 | 500 | 40 | 75 |

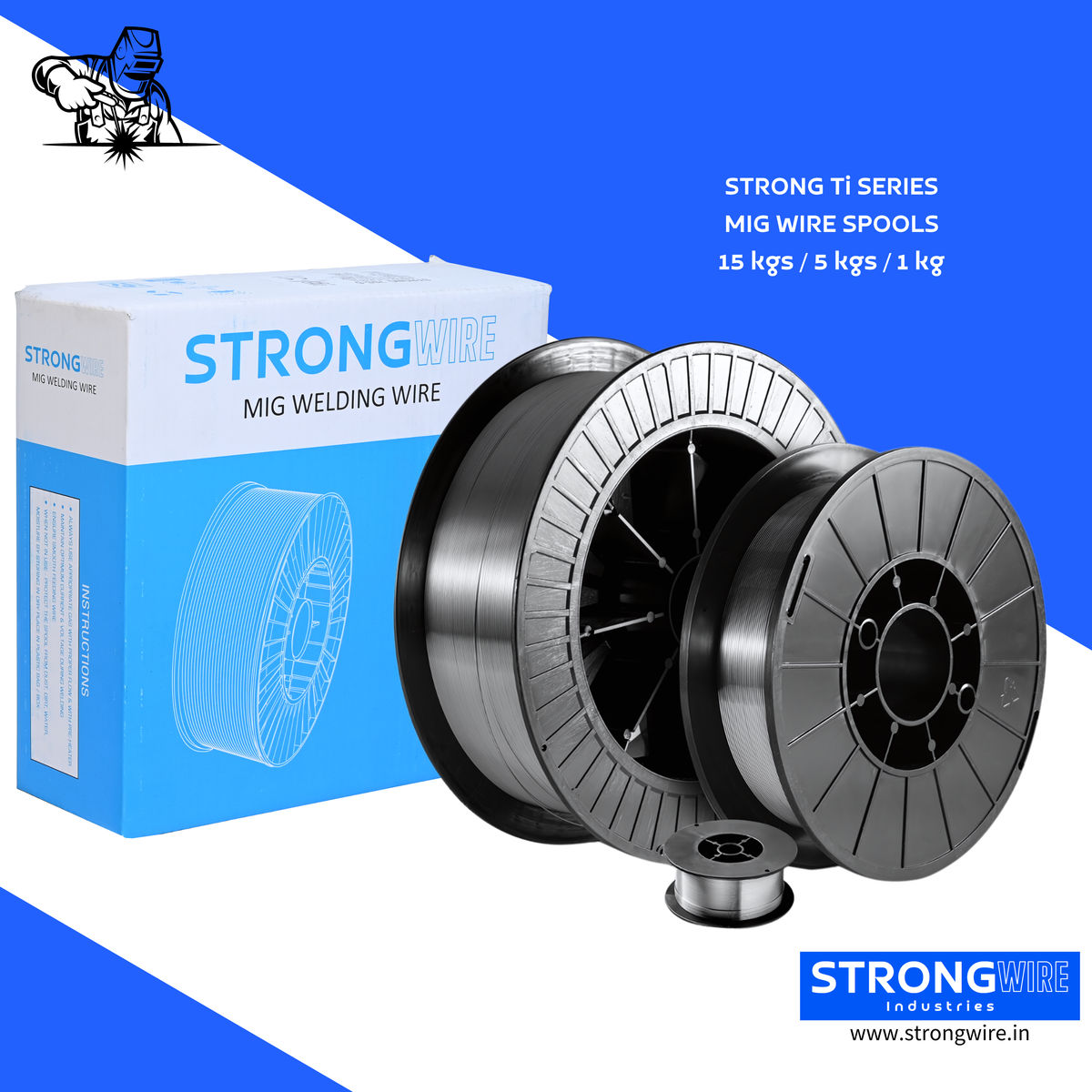

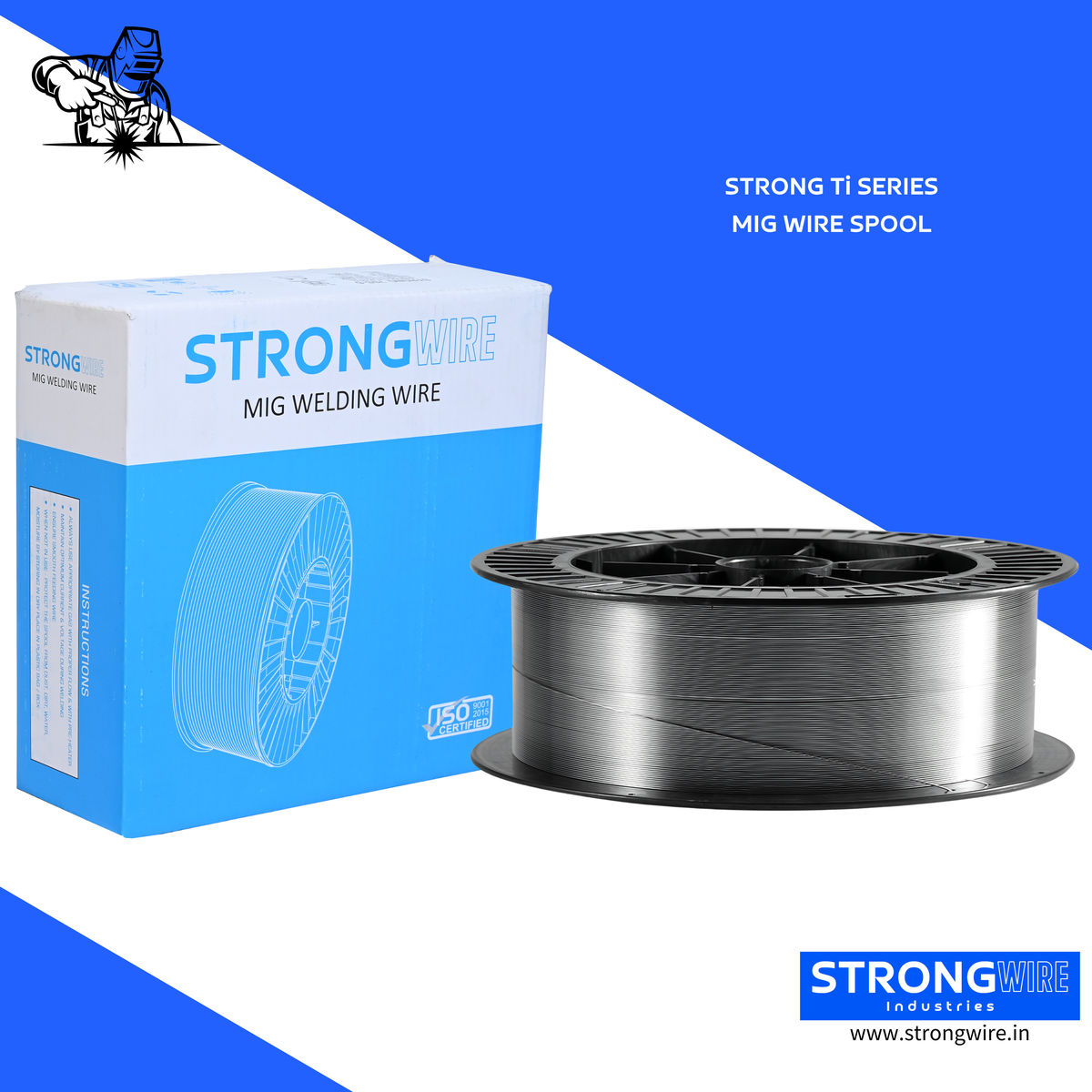

PACKAGING SPECIFICATIONS – MIG
DIA SIZE 0.80MM / 1.00MM / 1.20MM / 1.60MM / 2.00MM
SPOOL WEIGHT 1KGS / 5KGS / 12.5KGS / 15KGS / 17.5KGS

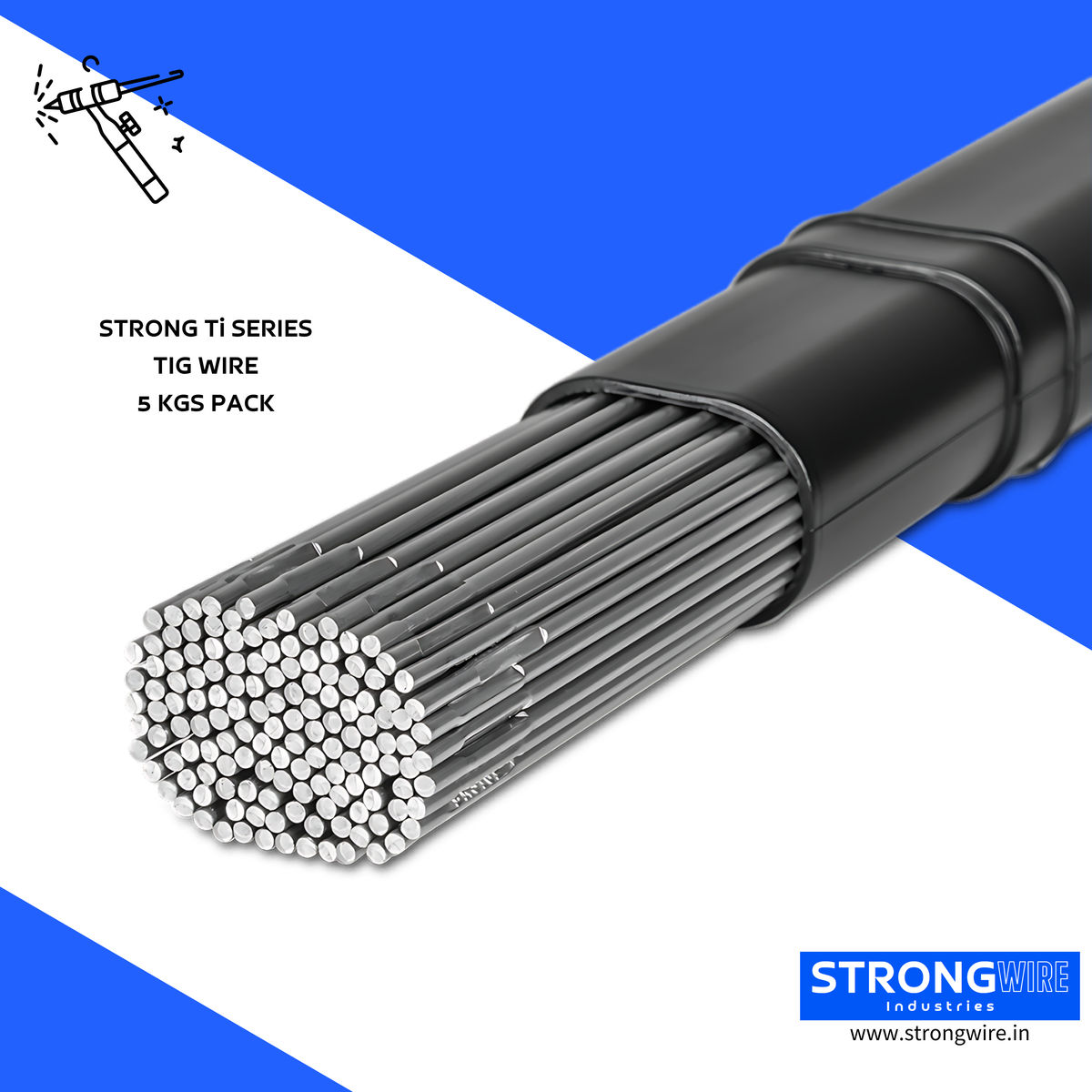

PACKAGING SPECIFICATIONS – TIG

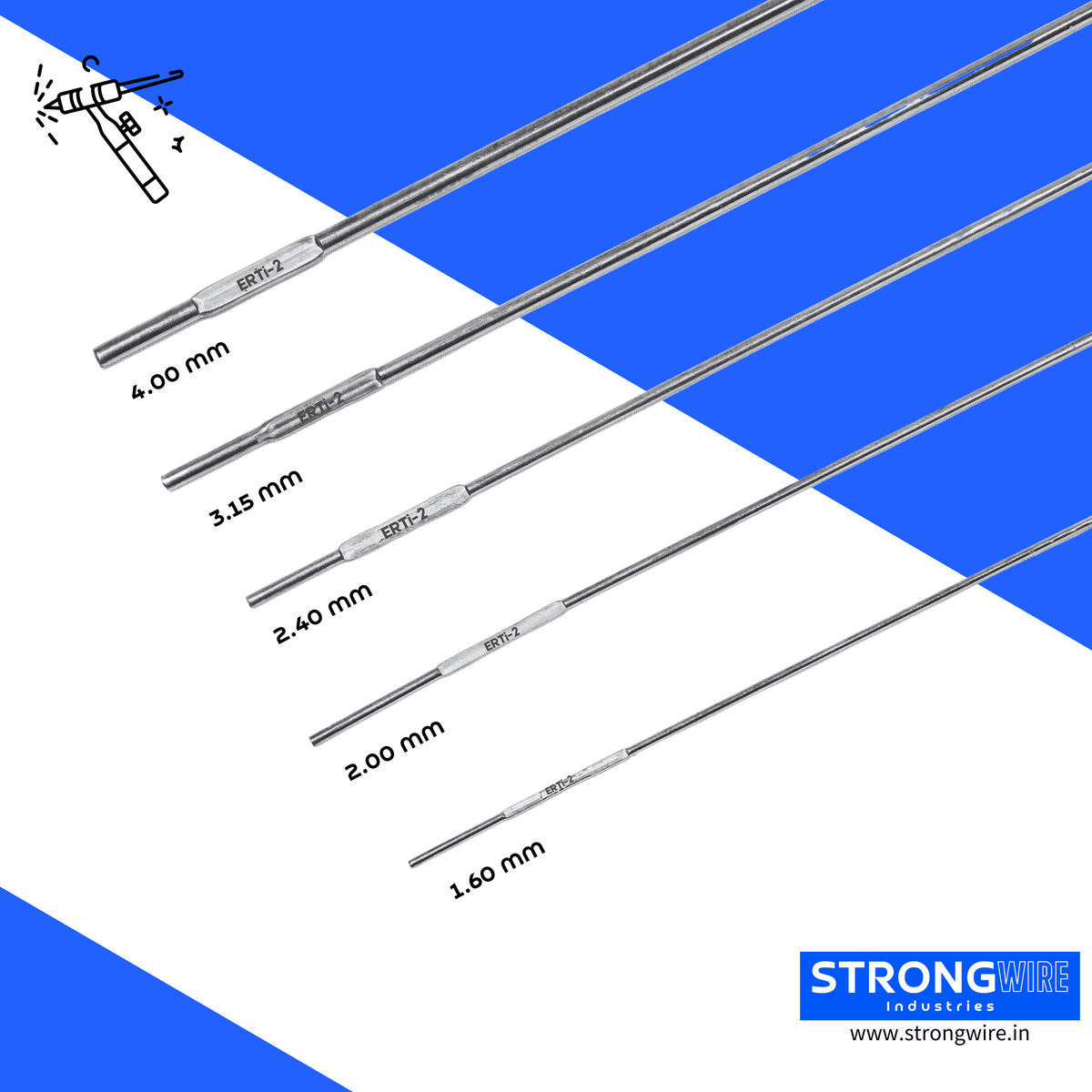

DIA SIZE 1.60MM / 2.00MM / 2.40MM / 3.15MM / 4.00MM
WEIGHT 5KGS / 20KGS
