C | Mn | Si | P | S | Cu | Ni | Cr | Mo | V |
---|---|---|---|---|---|---|---|---|---|
0.07- 0.12 | 1.60- 2.10 | 0.50- 0.80 | 0.025 MAX | 0.025 MAX | 0.50 MAX | 0.15 MAX | 0.15 MAX | 0.40- 0.60 | 0.03 MAX |
Required as per AWS 5.28 | Y.S MPa | U.T.S. MPa | ELONGATION % | IMPACT VALUE AT -30°C |
---|---|---|---|---|
Typical | ≥ 470 | ≥ 550 | ≥ 17 | ≥ 27 |
535 | 640 | 22 | 55 |

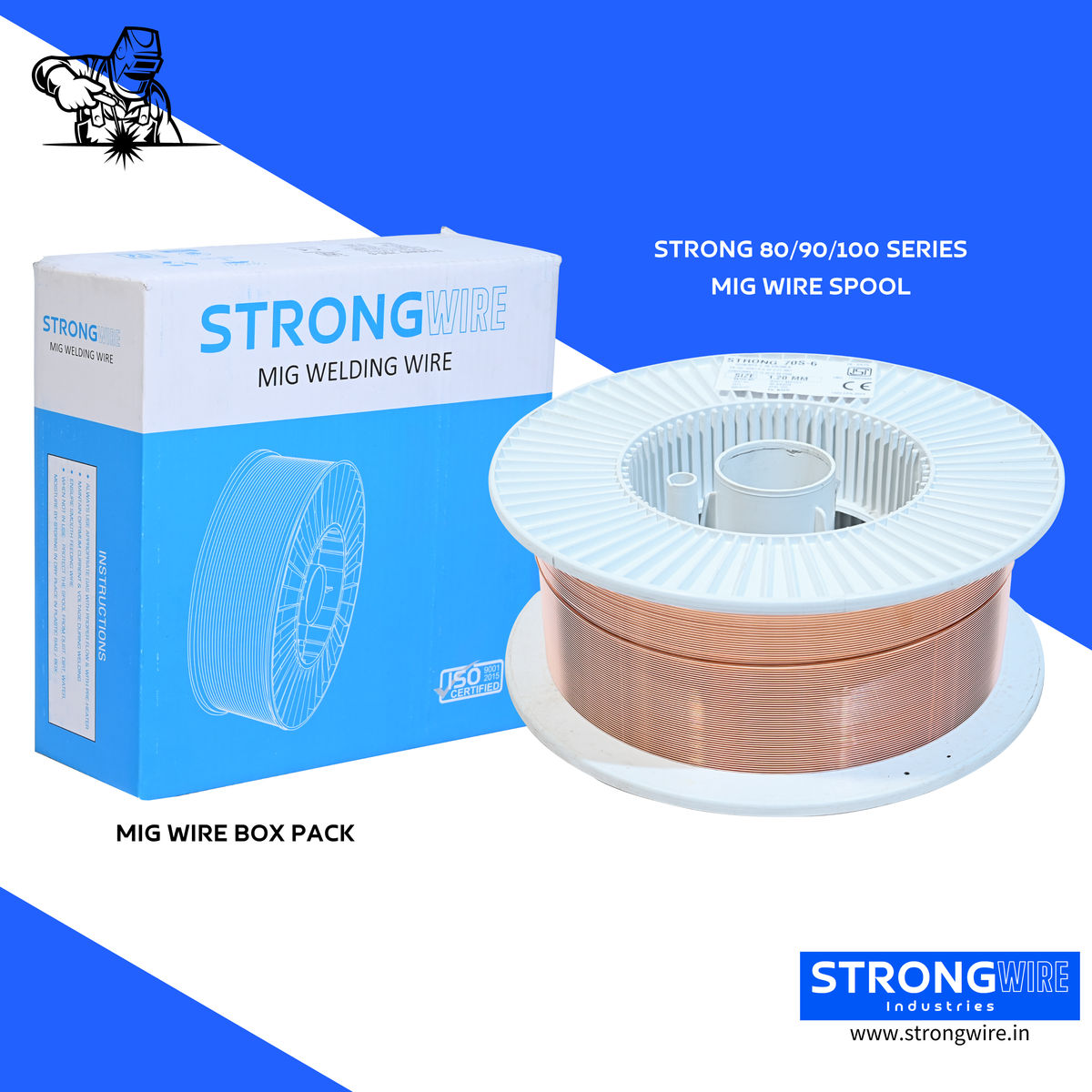

PACKAGING SPECIFICATIONS – MIG
DIA SIZE 0.80MM / 1.00MM / 1.20MM / 1.60MM / 2.00MM
SPOOL WEIGHT 1KGS / 1KGS / 5KGS / 12.5KGS / 15KGS / 17.5KGS
DRUM WEIGHT 100KGS / 100KGS / 150KGS / 250KGS / 300KGS / 350KGS
PACKAGING SPECIFICATIONS – TIG
DIA SIZE 1.60MM / 2.00MM / 2.40MM / 3.15MM / 4.00MM
WEIGHT 5KGS / 20KGS
