Strong 70S2
STRONG 70S-2
Copper Coated Solid Wire For MIG & TIG Welding

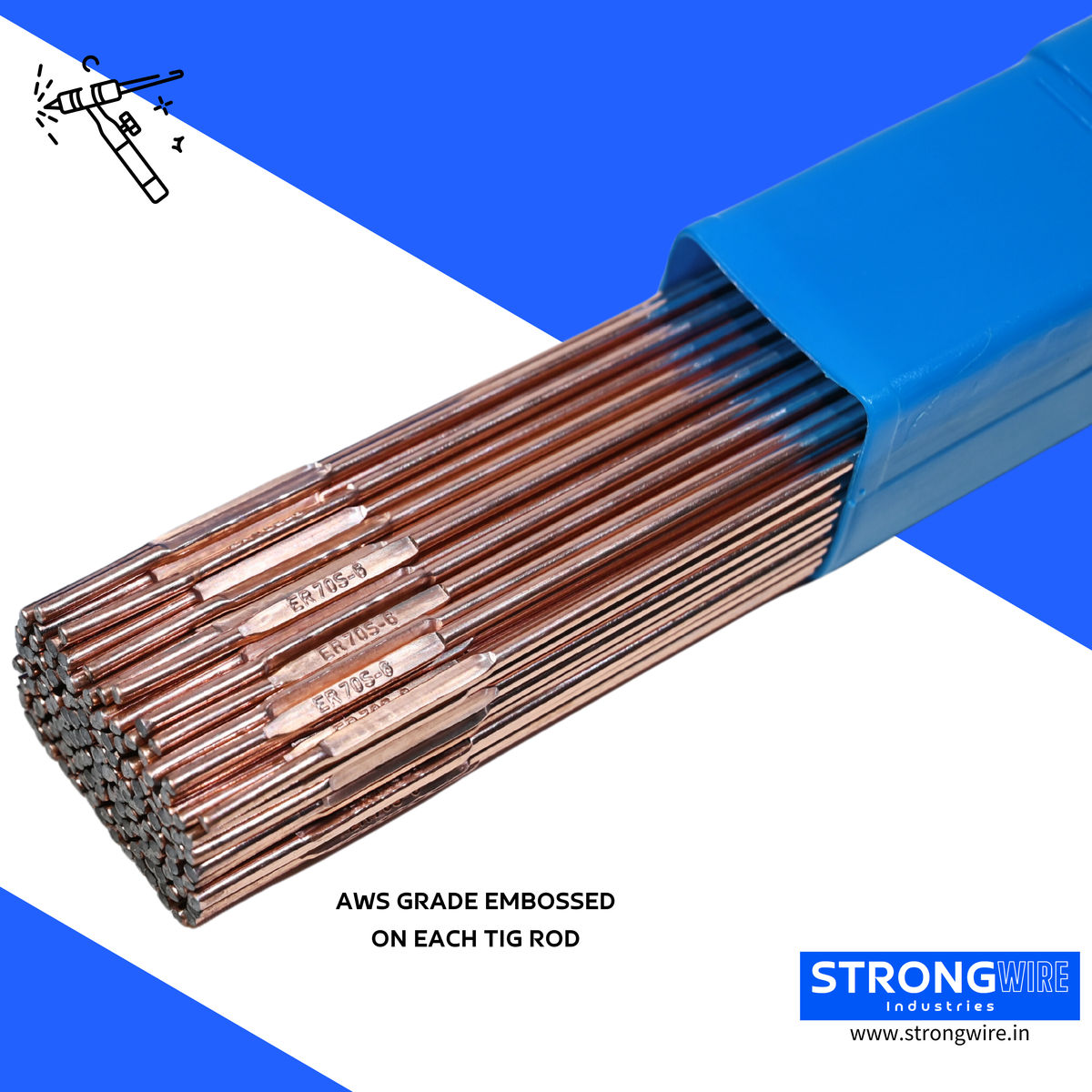

STRONG 70S-2 is a copper-coated carbon-manganese steel wire with tripple de-oxidizers (Ti, Zr, Al) which enhances deoxidation when welding over steels that are rusty or dirty. It is also suitable for welding thin, galvanized or electro-galvanized material with x-ray quality welds.
STRONG 70S-2 is designed for welding most carbon-manganese steels including structural steel, MS steel plates, pipes, fittings, castings and forgings. This product is also a preferred wire for all position welding of small diameter pipes.
TYPICAL WIRE CHEMISTRY (%)
| C | Mn | Si | P | S | Cu | Ti | Zr | Al |
|---|---|---|---|---|---|---|---|---|
| 0.07 MAX | 0.90- 1.40 | 0.40- 0.70 | 0.025 MAX | 0.025 MAX | 0.50 MAX | 0.05- 0.15 | 0.02- 0.12 | 0.05- 0.15 |
| Required as per AWS 5.18 | Y.S MPa | U.T.S. MPa | ELONGATION % | IMPACT VALUE AT -30°C JOULE |
|---|---|---|---|---|
| Typical | ≥ 400 | ≥ 490 | ≥ 22 | ≥ 27 |
| 440 | 535 | 27 | 66 |
PACKAGING SPECIFICATIONS – MIG
DIA SIZE 0.80MM / 1.00MM / 1.20MM / 1.60MM / 2.00MM
SPOOL WEIGHT 1KGS / 5KGS / 12.5KGS / 15KGS / 17.5KGS
DRUM WEIGHT 100KGS / 150KGS / 250KGS / 300KGS / 350KGS

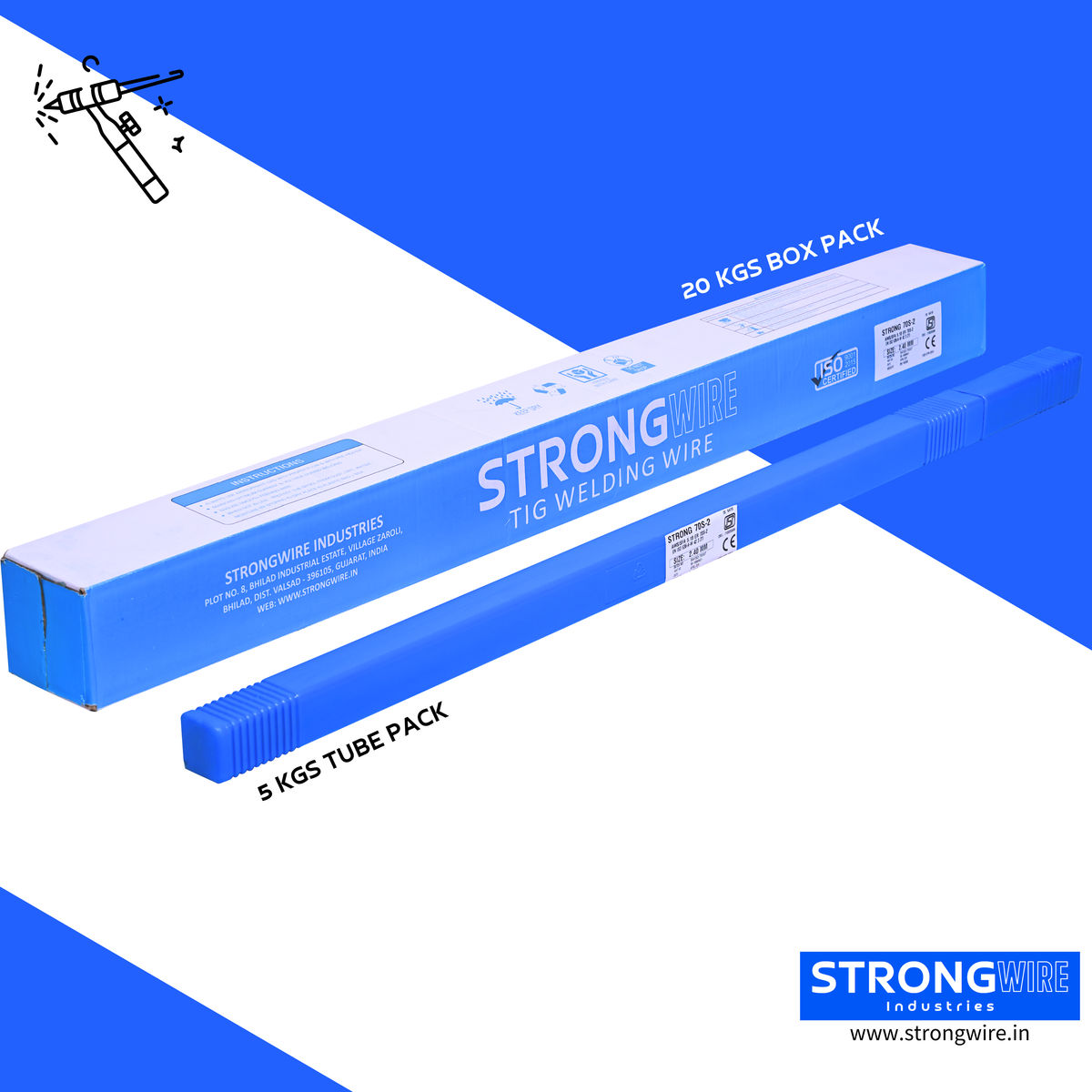

PACKAGING SPECIFICATIONS – TIG

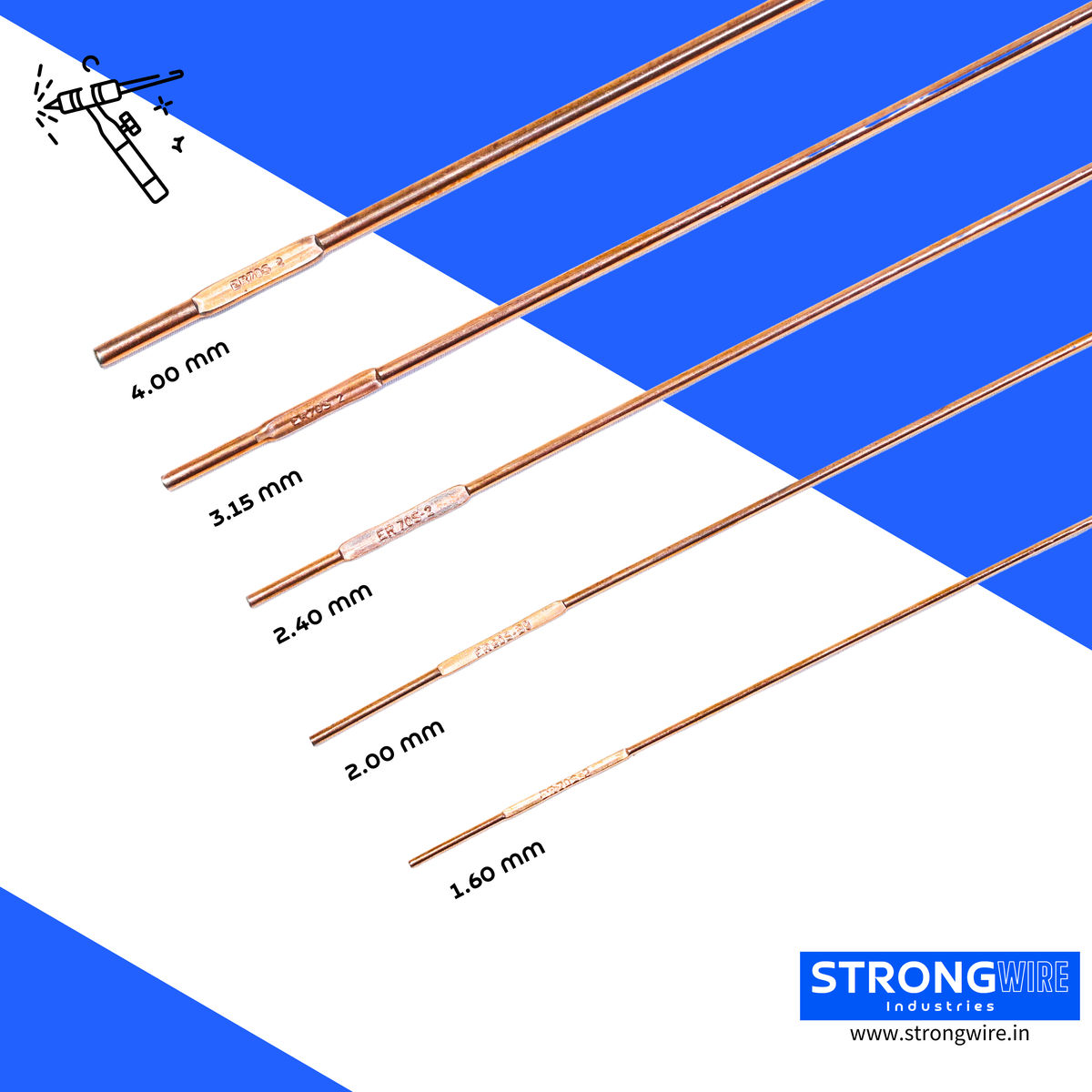

DIA SIZE 1.60MM / 2.00MM / 2.40MM / 3.15MM / 4.00MM
WEIGHT 5KGS / 20KGS
DIA SIZE 0.80MM / 1.00MM / 1.20MM / 1.60MM / 2.00MM
SPOOL WEIGHT 1KGS / 5KGS / 12.5KGS / 15KGS / 17.5KGS
DRUM WEIGHT 100KGS / 150KGS / 250KGS / 300KGS / 350KGS
PACKAGING SPECIFICATIONS – TIG
DIA SIZE 1.60MM / 2.00MM / 2.40MM / 3.15MM / 4.00MM
WEIGHT 5KGS / 20KGS
