Strong 120S-G
STRONG 120S-G
Copper Coated Solid Wire For MIG & TIG Welding
STRONG 120S-G is a low alloy – High Strength steel wire with very low impurities for welding
of high strength steels with minimum yield strength of 860 N/mm2. It provides smooth flow,
stable arc and spatter free welding under optimum conditions for x-ray quality welds.
STRONG 120S-G is suitable for joining of the high strength low alloy steels and fine grained
constructional steels where high impact toughness at low temperatures is required.
Applications in joining large vehicles, earth moving equipment, pipelines, tankers, containers
and crane manufacturing.
TYPICAL WIRE CHEMISTRY (%)
| C | Mn | Si | P | S | Cu | Ni | Cr | Mo | Ti |
|---|---|---|---|---|---|---|---|---|---|
| 0.07- 0.10 | 1.50- 1.90 | 0.60- 0.90 | 0.020 MAX | 0.020 MAX | 0.50 MAX | 2.00- 2.50 | 0.30- 0.50 | 0.30- 0.50 | 0.06- 0.10 |
| Required as per AWS 5.28 | Y.S MPa | U.T.S. MPa | ELONGATION % | |
|---|---|---|---|---|
| 870 | 935 | 18 |

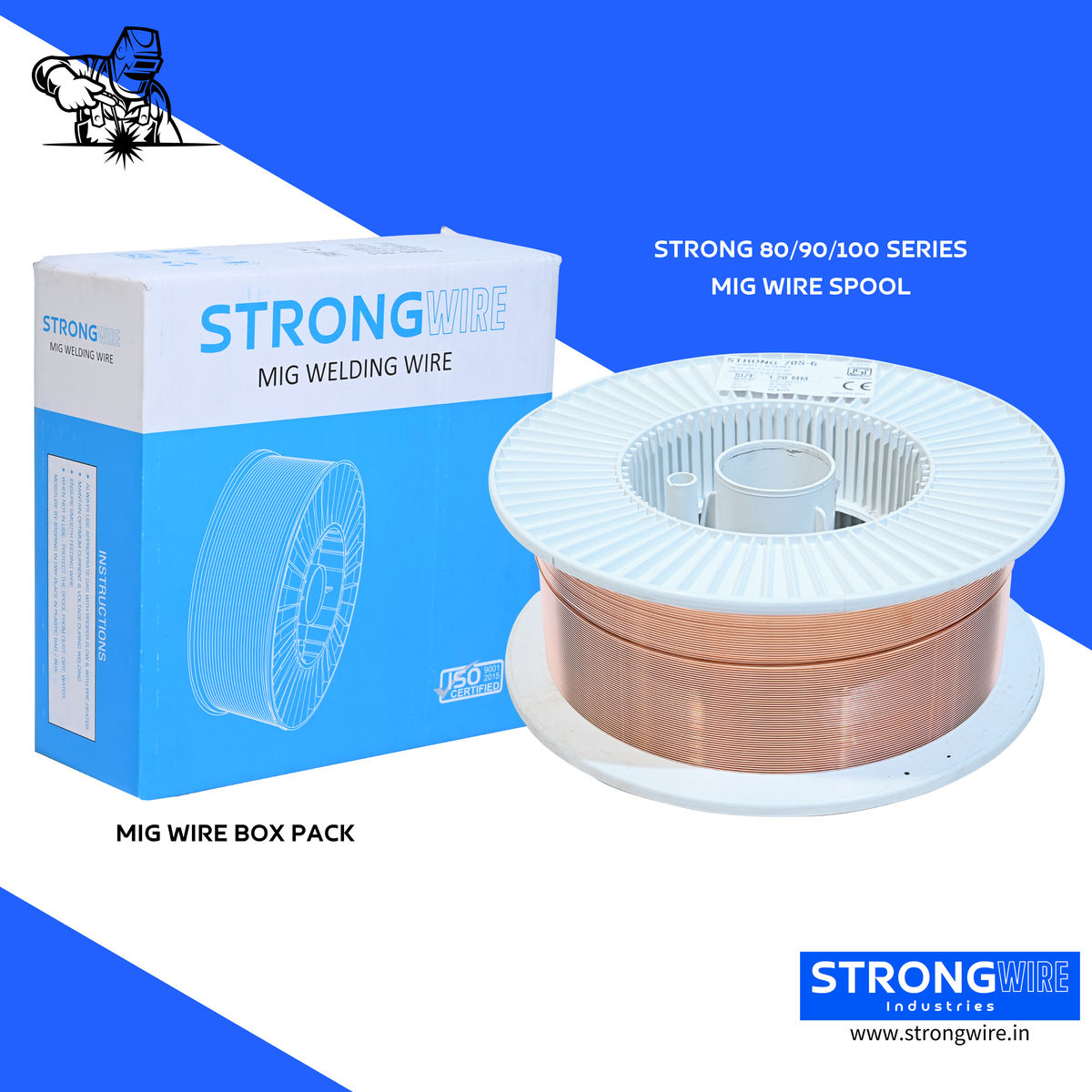

PACKAGING SPECIFICATIONS – MIG
DIA SIZE 0.80MM / 1.00MM / 1.20MM / 1.60MM / 2.00MM
SPOOL WEIGHT 1KGS / 5KGS / 12.5KGS / 15KGS / 17.5KGS
DRUM WEIGHT 100KGS / 150KGS / 250KGS / 300KGS / 350KGS
PACKAGING SPECIFICATIONS – TIG

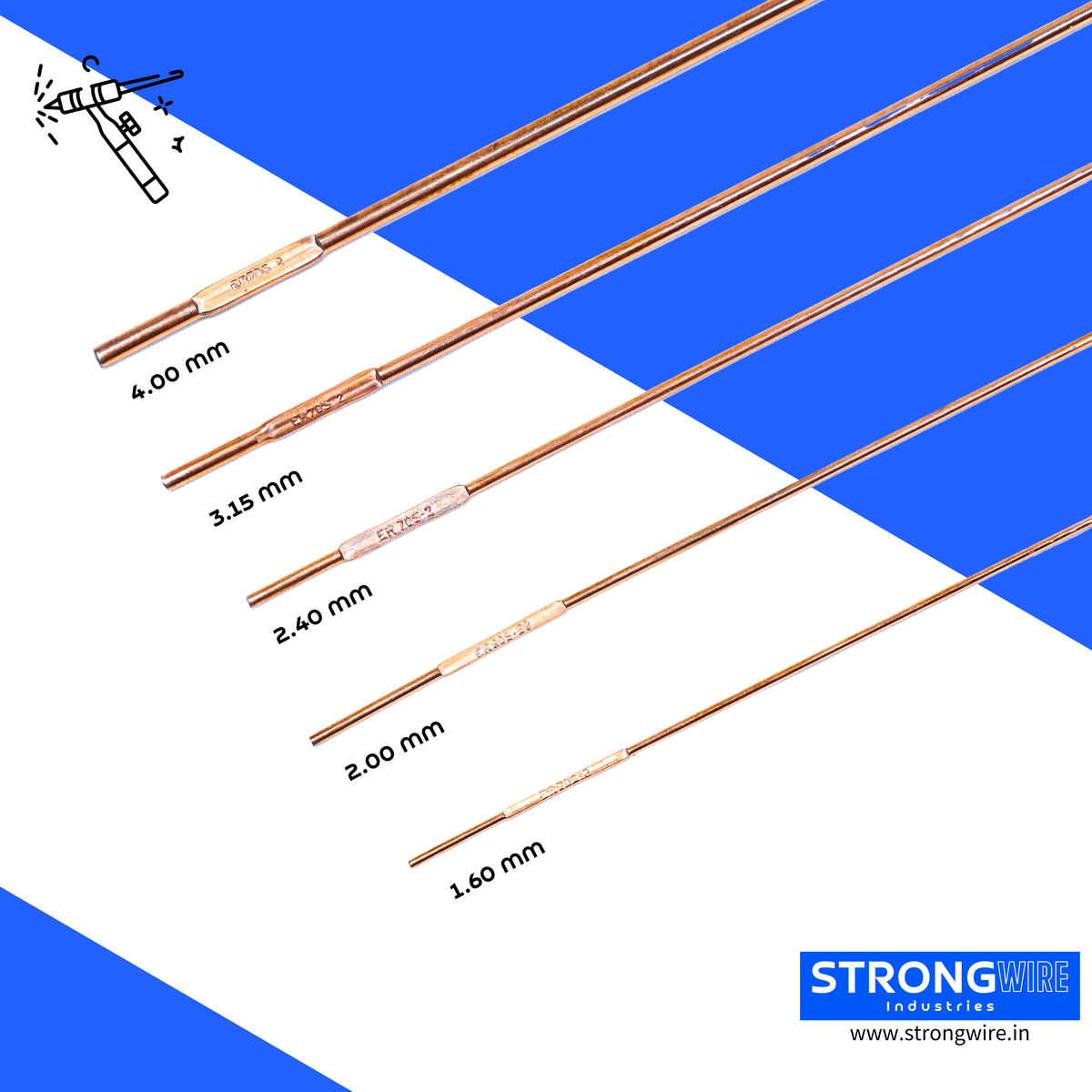

DIA SIZE 1.60MM / 2.00MM / 2.40MM / 3.15MM / 4.00MM

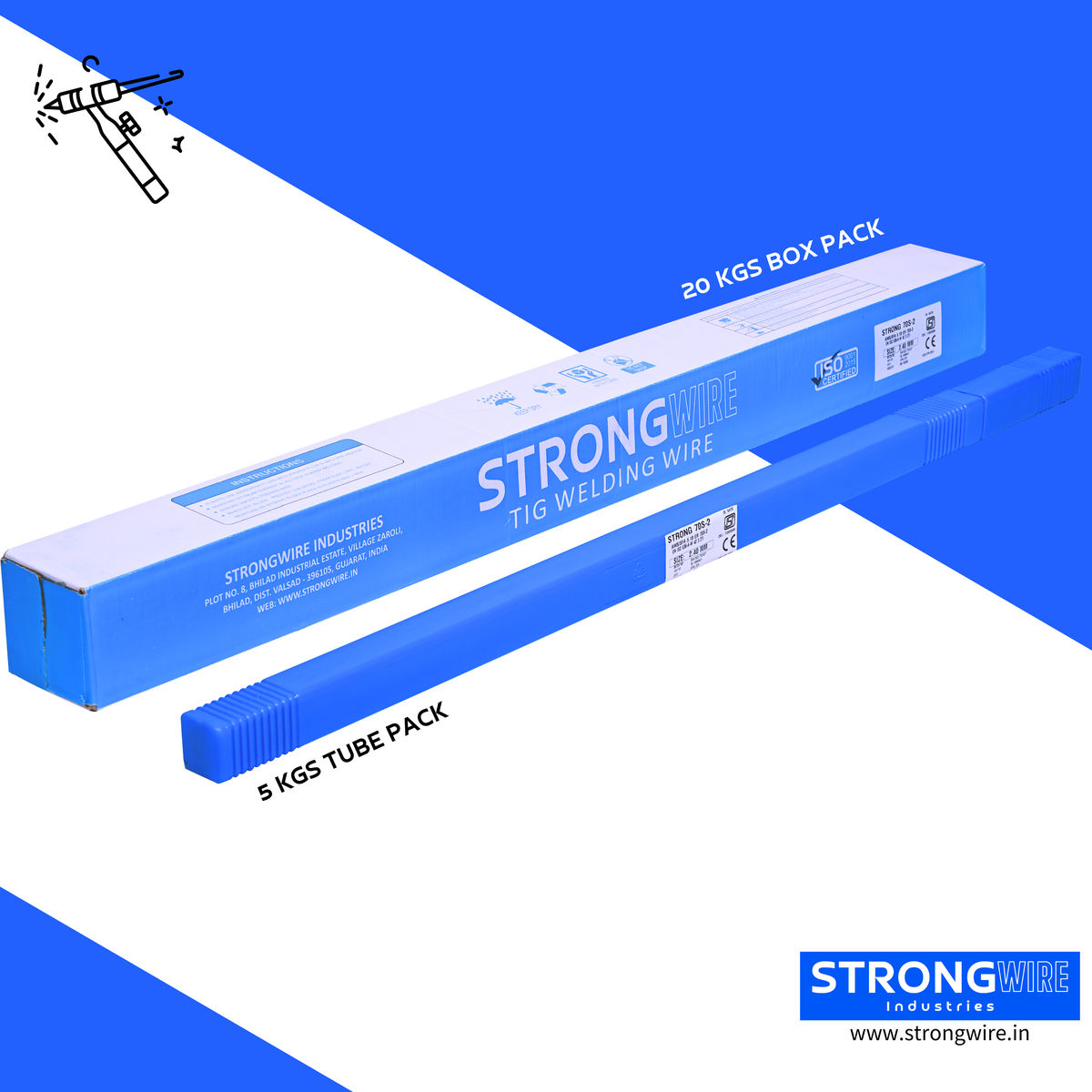

WEIGHT 5KGS / 20KGS
DIA SIZE 0.80MM / 1.00MM / 1.20MM / 1.60MM / 2.00MM
SPOOL WEIGHT 1KGS / 5KGS / 12.5KGS / 15KGS / 17.5KGS
DRUM WEIGHT 100KGS / 150KGS / 250KGS / 300KGS / 350KGS
PACKAGING SPECIFICATIONS – TIG
DIA SIZE 1.60MM / 2.00MM / 2.40MM / 3.15MM / 4.00MM
WEIGHT 5KGS / 20KGS
