STRONG EM12K

Copper Coated SAW Wire for Mild Steel & 490 MPa High Tensile Steels
STRONG EM12K is a medium manganese copper coated wire for Submerged Arc Welding of medium and high tensile steels. It results in higher impact values of weld metal, when combined with appropriate flux. This wire is an excellent choice for boiler/pressure vessel applications and structural steels.

Download PDF Catalogue

TYPICAL WIRE CHEMISTRY (%)

CMnSiSPCu
0.05 – 0.150.80-1.250.10-0.350.030 MAX0.030 MAX0.35 MAX

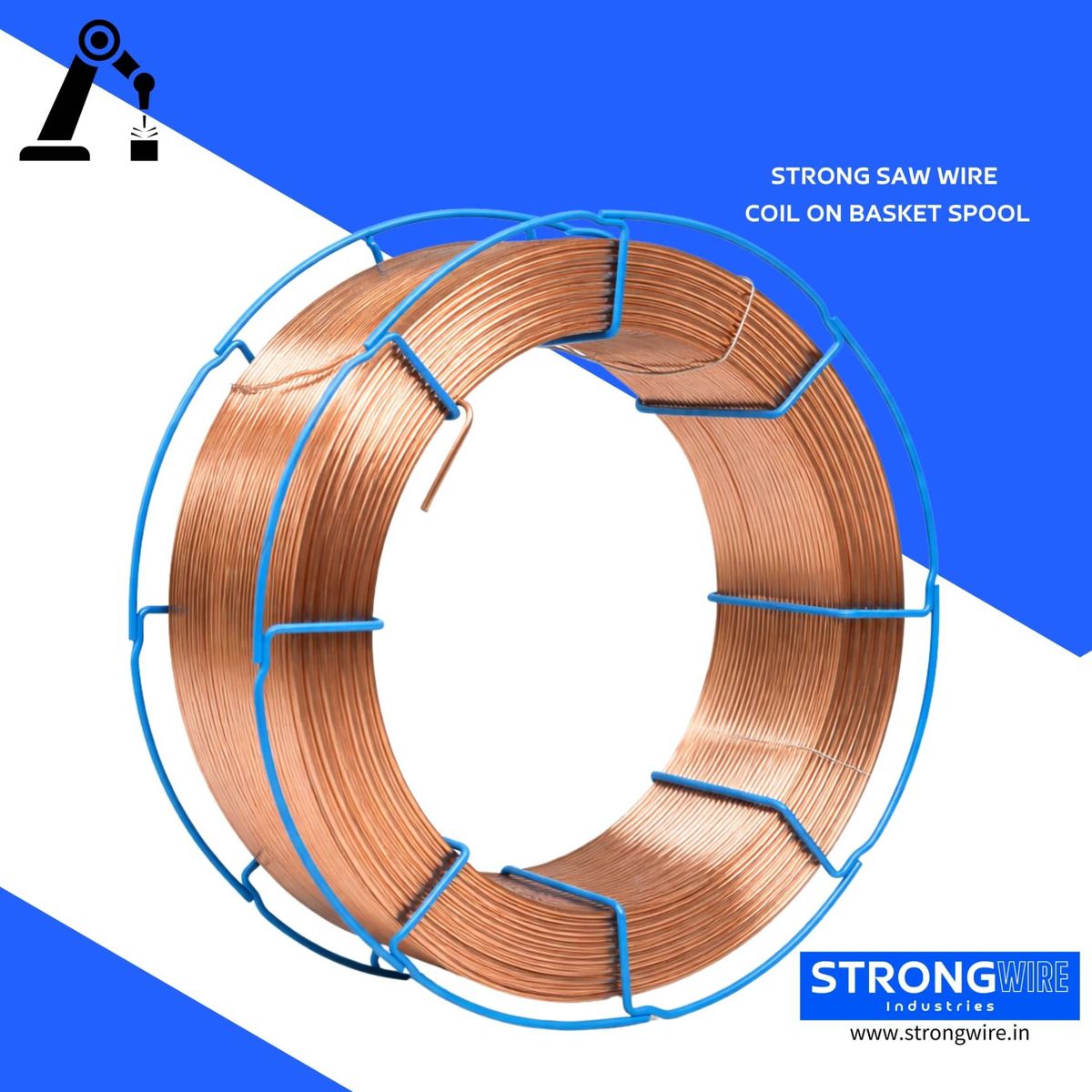

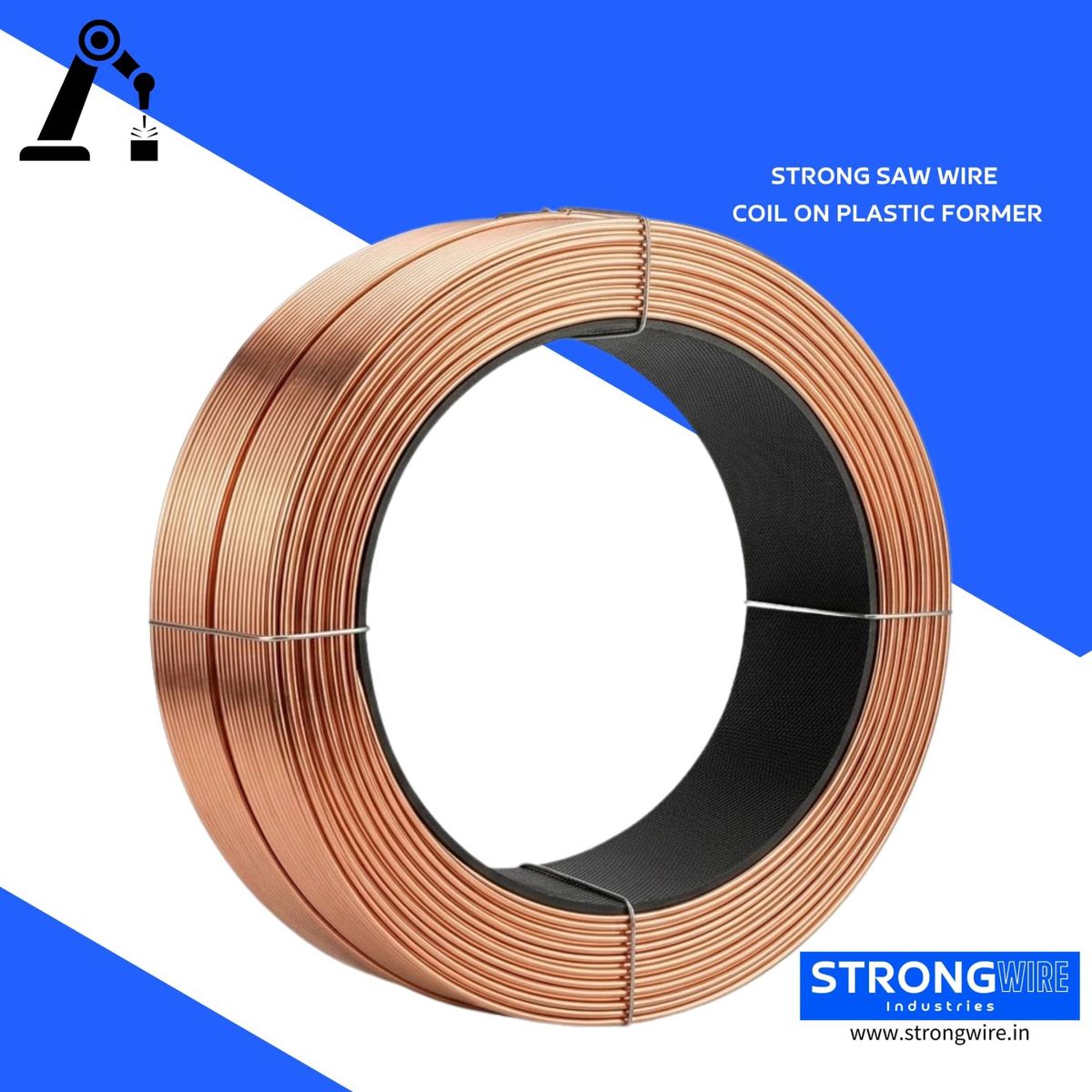

PACKAGING SPECIFICATIONS – SAW SPOOL PACK
DIA SIZE 1.60MM / 2.00MM / 2.40MM / 3.15MM / 4.00MM / 5.00MM

SPOOL WEIGHT 25KGS / 30KGS

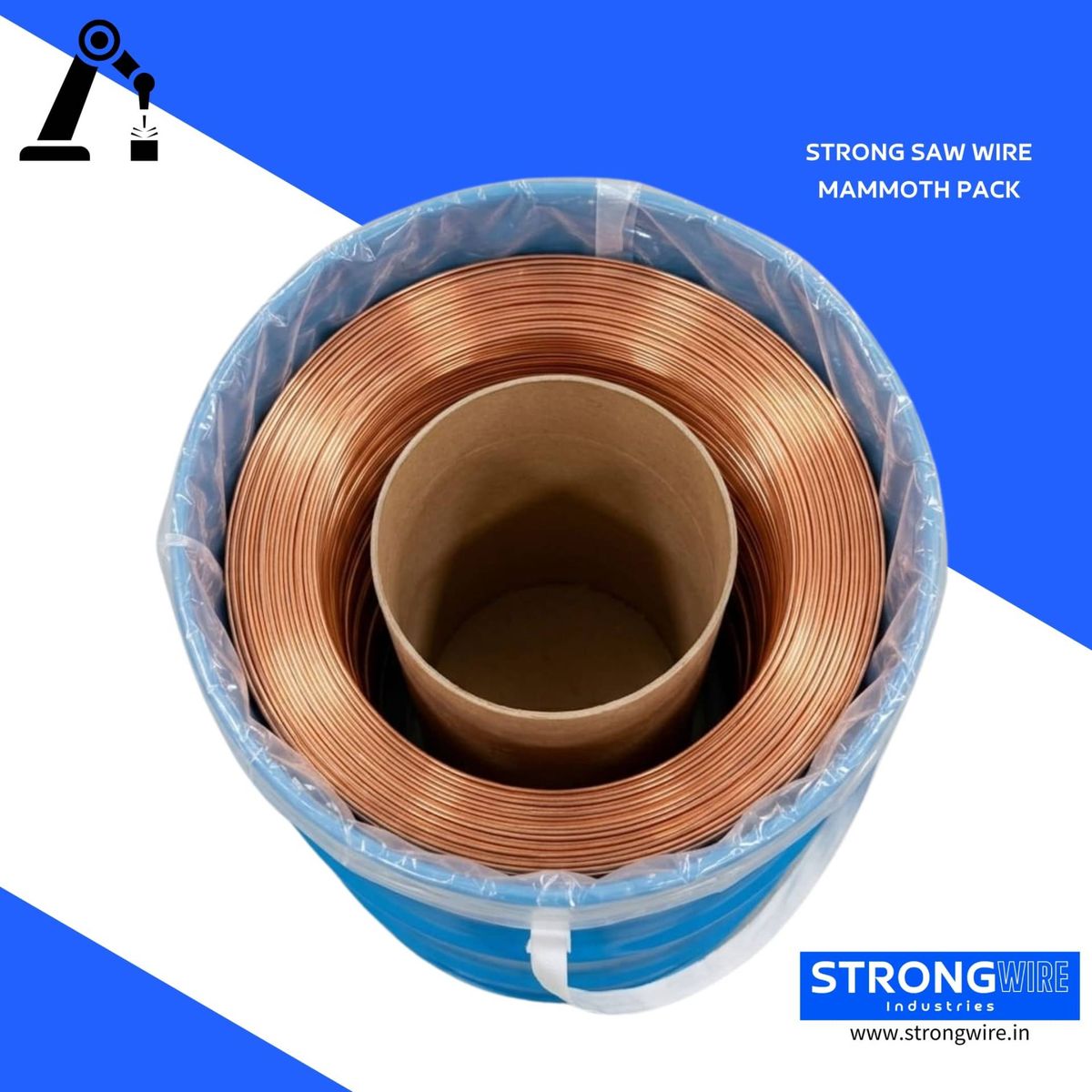

PACKAGING SPECIFICATIONS – DRUM PACK

DIA SIZE 1.60MM / 2.00MM / 2.40MM / 3.15MM / 4.00MM / 5.00MM

150KGS / 250KGS / 300KGS / 350KGS / 500KGS
